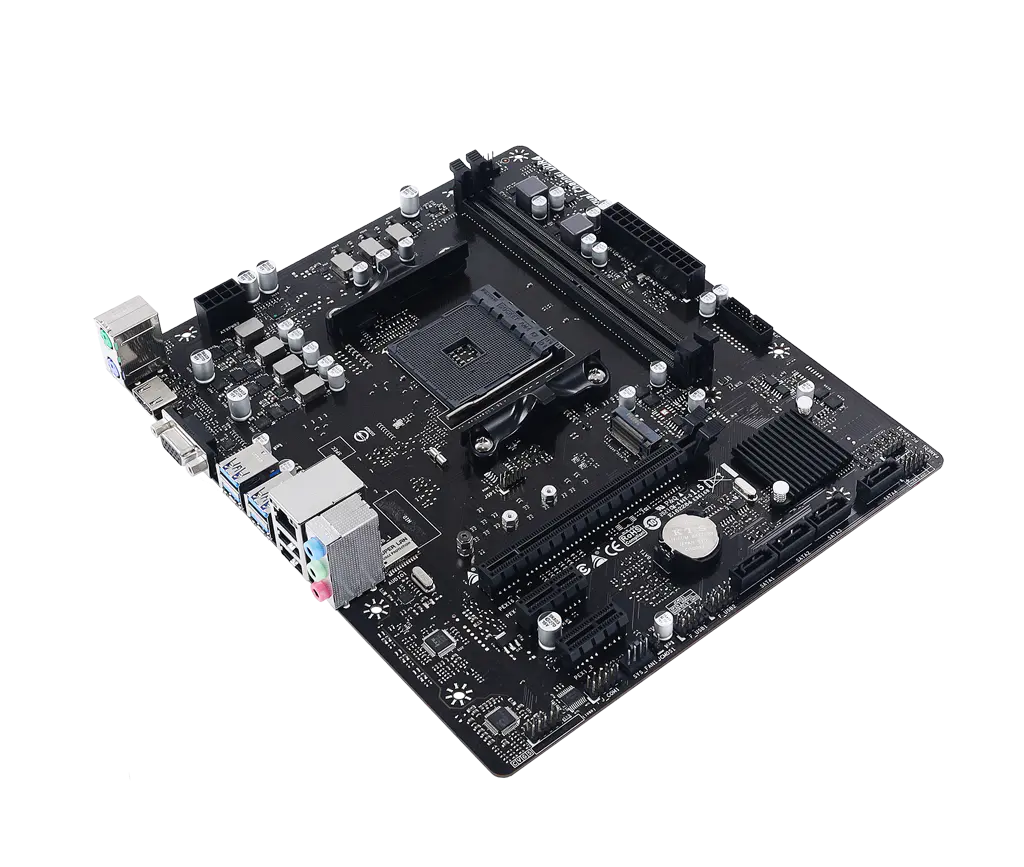

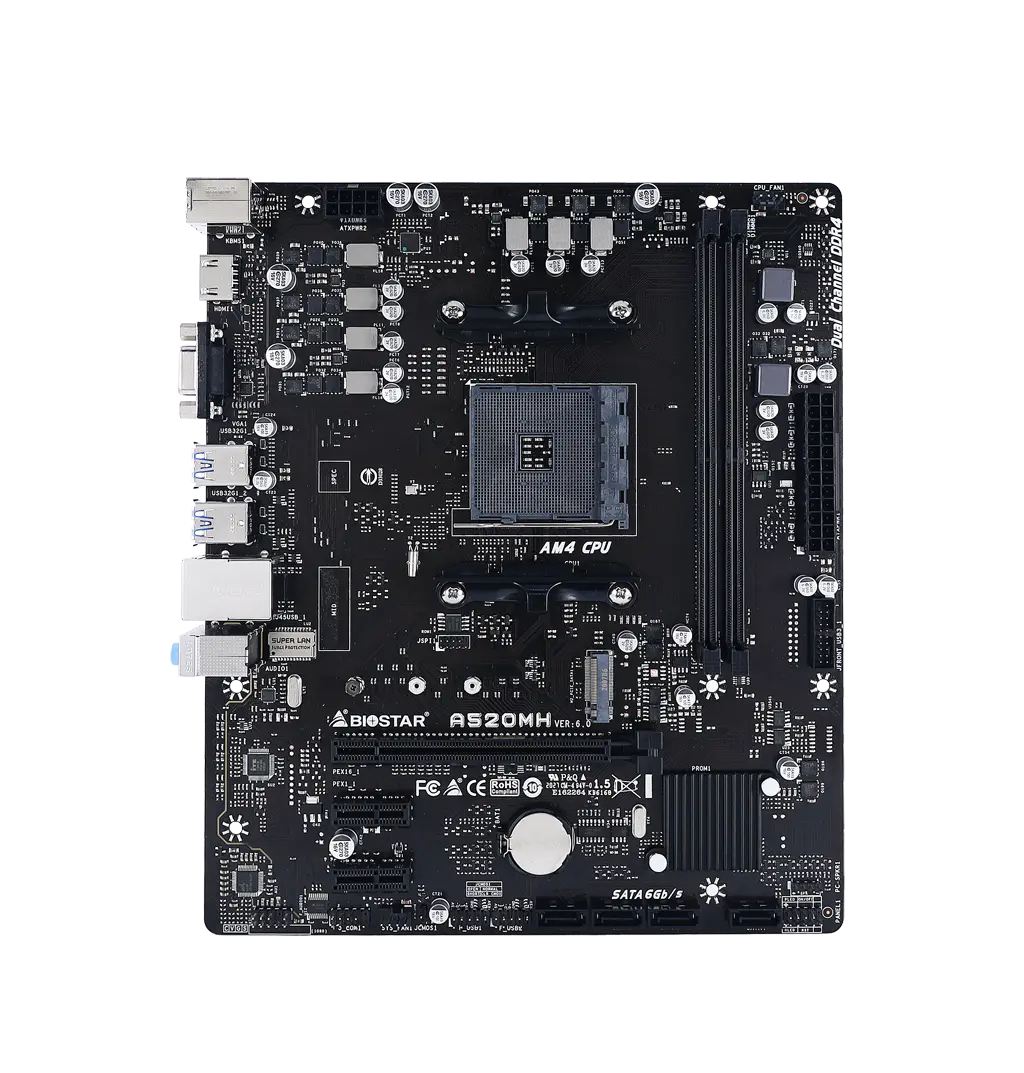

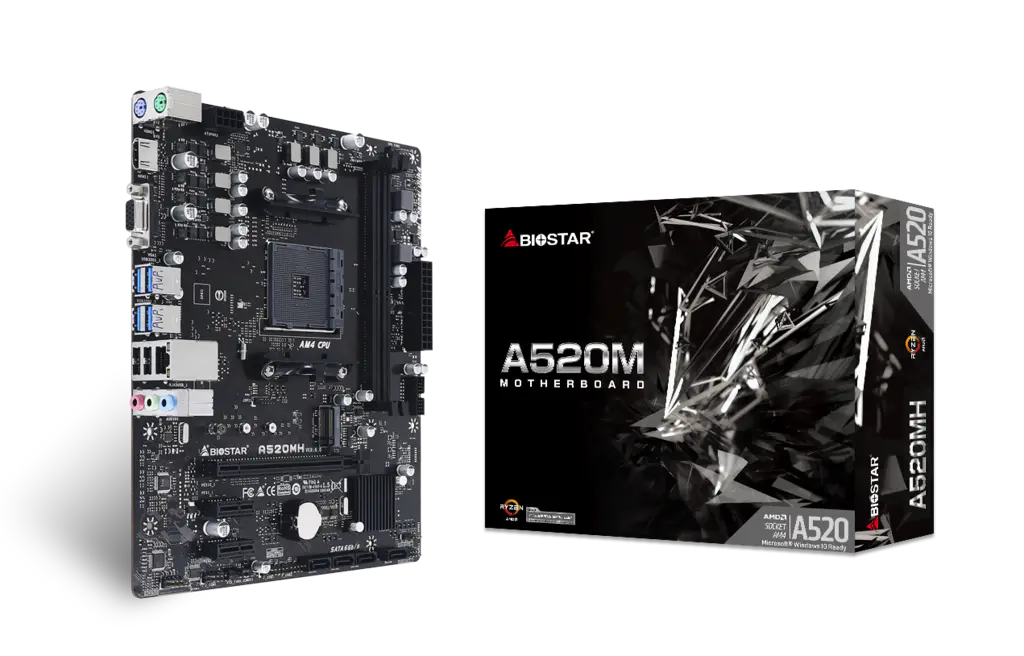

BIOSTAR A520 MT – AMD AM4 – UATX – 2 X DDR4 – USB 3.0 – HDMI – 1 X PCIe 3.0 –

Carte Mère BIOSTAR A520M – AA52IM4S-R01 VER 6.0 –

✅Chipset

AMD A520

✅CPU SUPPORT

Socket AM4 support AMD Ryzen™ 3rd Gen (Matisse/ Renoir) and Ryzen™ 4th Gen (Vermeer/ Cezanne) processors

Support for future AMD Ryzen processors with BIOS update

* Please refer to www.biostar.com.tw for CPU support list.

✅MEMORY

4th Gen AMD Ryzen Processors (Vermeer CPUs):

Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133

4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs):

Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133

3rd Gen AMD Ryzen Processors (Matisse CPUs):

Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133

3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):

Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module

* Please refer to www.biostar.com.tw for Memory support list.

✅INTEGRATED VIDEO

By CPU model

Supports DX12

Supports HDCP

✅STORAGE

Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports

AMD Ryzen 5000/5000 G/4000 G/3000 Processors

1 x M.2 (M Key) Socket (M2M_CPU):

Supports M.2 Type 2242/ 2260/ 2280 SSD module

Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD

AMD A520 Chipset

4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10

✅LAN

Realtek RTL8111H

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

✅AUDIO CODEC

ALC897

7.1 Channels, High Definition Audio, Hi-Fi (Front)

✅USB

1 x USB 3.2 (Gen2) Type-C port (1 via internal headers)

6 x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers)

6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)

✅EXPANSION SLOT

AMD Ryzen 5000/5000 G/4000 G/3000 Processors

1 x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode)

AMD A520 Chipset

2 x PCIe 3.0 x1 Slot

* According to different CPUs will have different speeds.

✅REAR I/O

1 x DP Port

1 x HDMI Port

1 x LAN port

4 x USB 3.2 (Gen1) Ports

2 x USB 2.0 Ports

3 x Audio Jack

✅INTERNAL I/O 4 x SATA III (6.0Gb/s) Connectors

2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x USB 3.2 (Gen2) Type-C Header

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector
