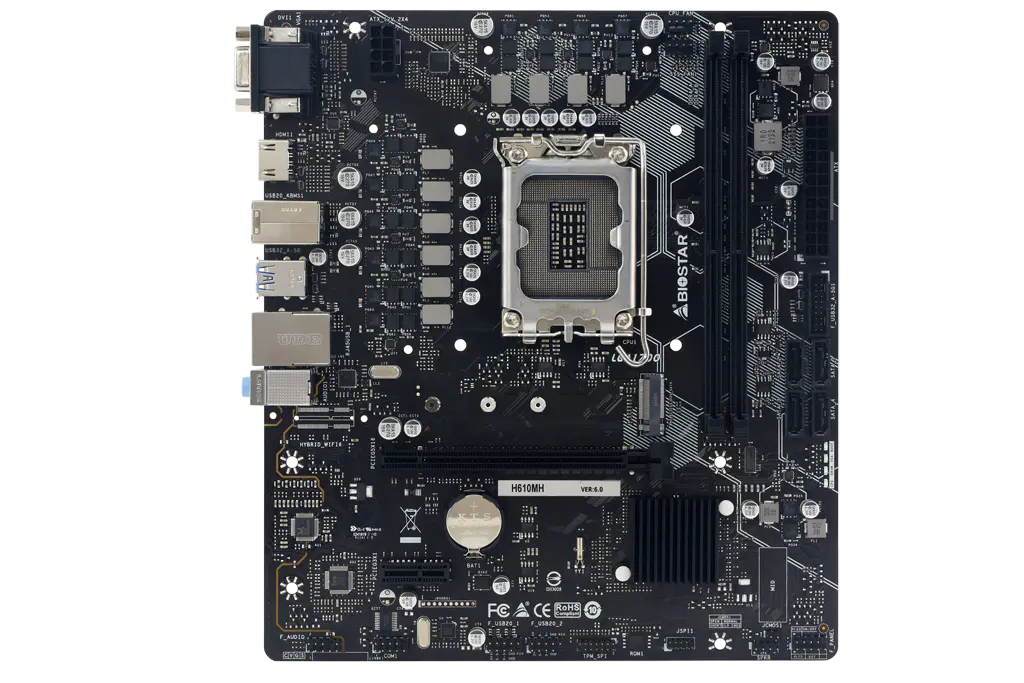

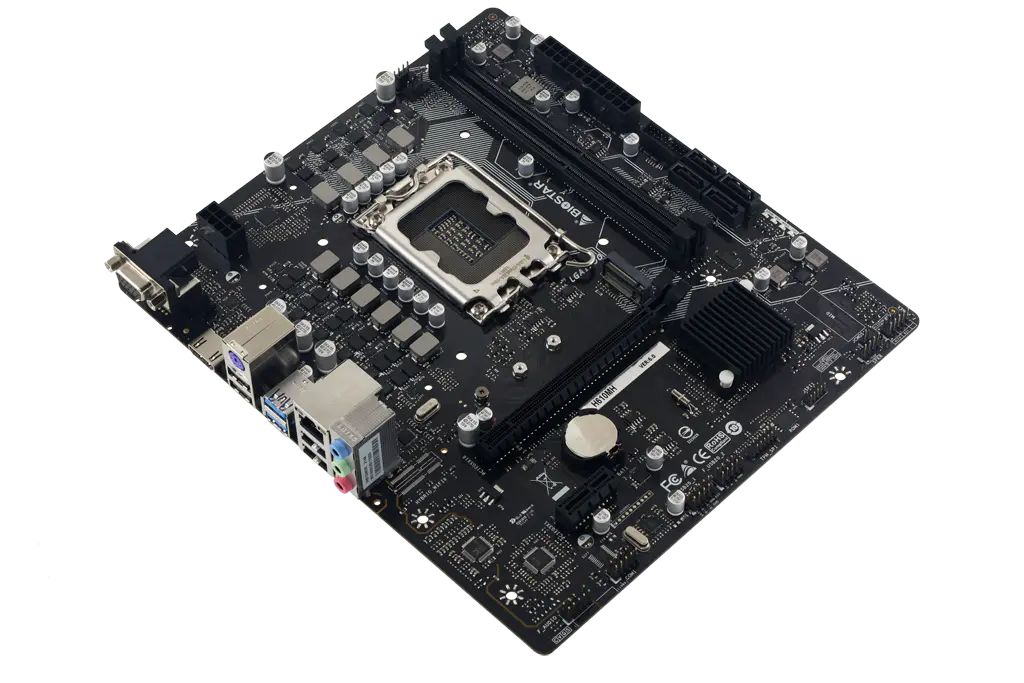

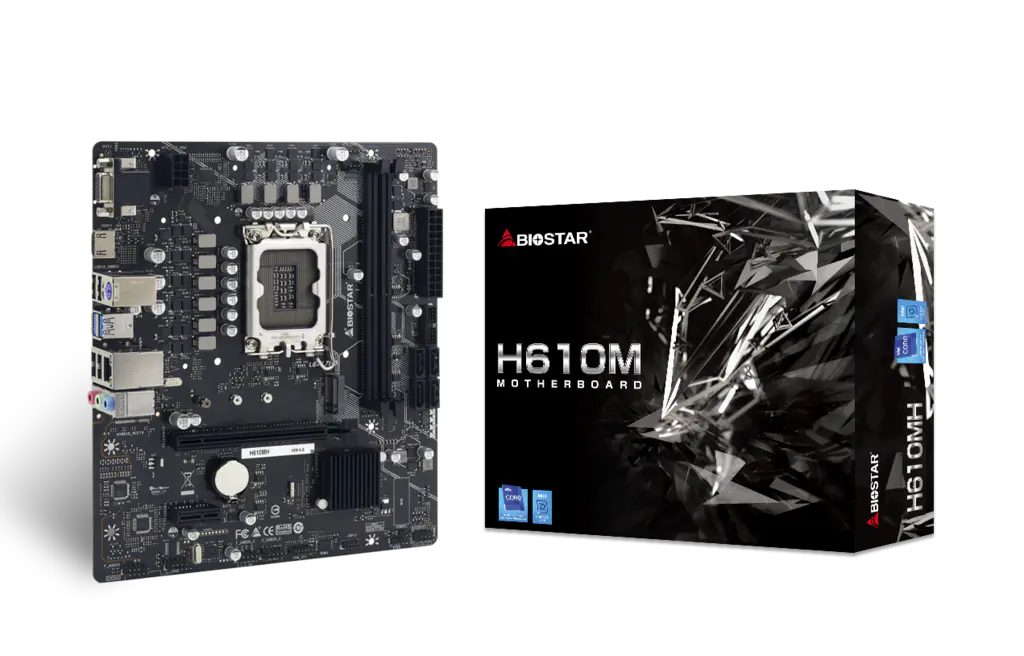

BIOSTAR H610 MHP – LGA 1700 – UATX – 2 X DDR4 – USB 3.2 – HDMI VGA – 1 X PCIe 3.0 –

Intel H610

✅CPU SUPPORT

Support for 12th/ 13th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package

* Please refer to for CPU support list.

✅MEMORY

Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 4/8/16/32GB DDR4 module

Support Intel Extreme Memory Profile (XMP) memory modules

* Please refer to for Memory support list.

✅INTEGRATED VIDEO

Supports DX12

Supports HDCP

✅STORAGE

Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports

Intel H610 Chipset

1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):

Supports M.2 Type 2242 /2260 /2280 SSD module

Supports PCIe 3.0 x 4 (32Gb/s) & SATA lll (6Gb/s) SSD

4 x SATA III Connector (6Gb/s)

✅LAN

Intel I219V

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC ALC897

7.1 Channels, High Definition Audio

✅USB

4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)

8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)

✅EXPANSION SLOT

INTEL 12th/13th Processors

1 x PCIe 4.0 x16 Slot (x16 mode)

Intel H610 Chipset

1 x PCIe 3.0 x1 Slot

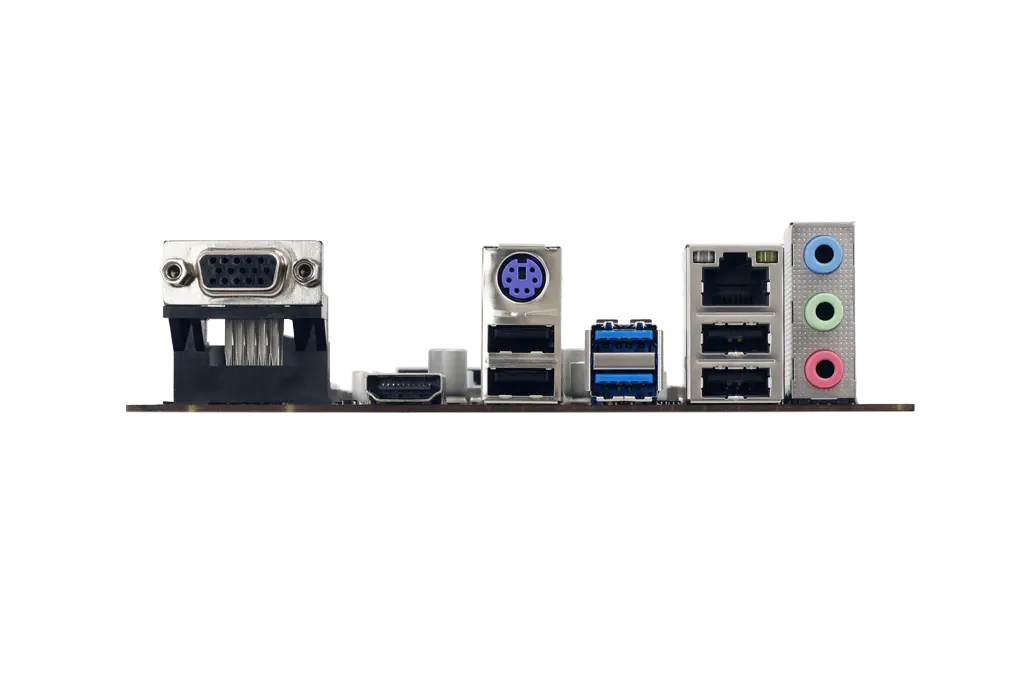

✅REAR I/O

1 x PS/2 Keyboard/Mouse Port

1 x HDMI

1 x VGA Port

2 x USB 3.2 (Gen1) ports

4 x USB 2.0 ports

1 x LAN port

3 x Audio Jack

✅INTERNAL I/O

4 x SATA III Connectors (6Gb/s)

2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Internal Stereo Speaker Header

1 x Clear CMOS Header

1 x COM Port Header

1 x TPM Header

✅H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

CPU/DDR Voltage Monitoring
